MPR Strip Nozzles Series

$3.99

In stock

Only %1 left

SKU

STRIPNOZZLES

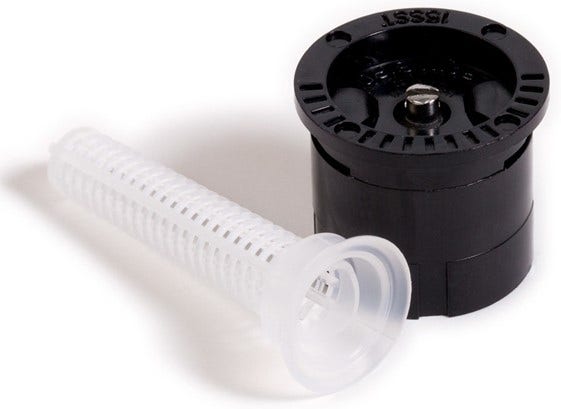

Trusted for decades, Rain Bird MPR Nozzles feature Matched Precipitation Rate watering distribution technology. Nozzles with varying arcs and radii can be mixed on the same zone regardless of spray adjustment and still maintain even water distribution rates. MPR nozzles are designed to provide uniform coverage, ensuring that your lawn is green throughout. Non-corrosive plastic and stainless steel construction for long life.

Stainless steel adjustment screw adjusts spray distance. Nozzle sprays a center strip pattern at a 30° trajectory and fits all Rain Bird pop-up sprinklers and shrub adapters. Mesh filter screen protects from clogging and maintains precise radius adjustment.

Nozzle Performance Chart

Skip to the end of the images gallery

Skip to the beginning of the images gallery

	HE-VAN ADJUSTABLE NOZZLES	DUAL SPRAY FIXED PATTERN NOZZLES	MULTI-STREAM ROTARY NOZZLES	MPR ADUSTABLE NOZZLES	MPR FIXED PATTERN NOZZLES	MPR SPECIAL PATTERNS
SPECS
Type	High Efficiency	High Efficiency	High Efficiency	Standard Efficiency	Standard Efficiency	Standard Efficiency
Features	Adjustability plus efficiency	Superior close-in coverage	Multiple rotating streams for uniform coverage	Even coverage	Even coverage	Covers rectangular areas
	Large, wind-resistant drops cover evenly	Eliminates dry, brown spots	Slow distribution rate, ideal for newly seeded areas and slopes	Matches precipitation rate of other MPR nozzles on the zone	Matches precipitation rate of other MPR nozzles on the zone	Matches precipitation rate of other MPR nozzles on the zone
	Up to 35% water savings	Up to 35% water savings	Up to 30% water savings	Distance adjustment screw	Distance adjustment screw	Distance adjustment screw
Models	HE-VAN08: 0–360°, 6'-8'	12DSF: 360°, 9'–12'	14RNFPRO: Full Circle, 8'–14'	12AP: 0–360°, 9'–12'	8FC1: 360°, 6'–8'	15CSTC1: Center Strip, 3' x 20' – 4' x 30’
	HE-VAN10: 0–360°, 8’-10'	12DSH: 180°, 9'–12'	14RNVAPRO: Adj 45°–270°, 8'–14'	15AP: 0–360°, 12'–15'	8HC1: 180°, 6'–8'	15ESTC1: End Strip, 3' x 10' – 4' x 15’
	HE-VAN12: 0–360°, 9'-12'	12DSQ: 90°, 9'–12'	18RNFPRO: Full Circle, 13’–18'	18AP: 0–360°, 14'–18'	8QC1: 90°, 6'–8'	15SSTC1: Side Strip, 3' x 20' – 4' x 30'
	HE-VAN15: 0–360°, 12’-15'		18RNVAPRO: Adj 45°–270°, 13’–18'		15FC1: 360°, 12'–15'
			24RNFPRO: Full Circle, 17’–24'		15HC1: 180°, 12'–15'
			24RNVAPRO: Adj 45°–270°, 17’–24'		15QC1: 90°, 12'–15'

Nozzle Pattern	Specialty
Nozzle Radius	5x30 ft
Nozzle Type	Fixed spray
Nozzle Series	MPR

MPR Strip Nozzles Series

More Information
