Bundle - Buy 6 TBOSPSOL and get FREE ESP-BAT-BT 6-Station Bluetooth Battery Operated Controller

$302.94

SKU

TBOSPSOLBAT6

Professional-Grade Irrigation Control Where AC Power Is Not an Option

Built for remote and hard-to-reach sites, the ESP-BAT-BT combines long battery life, advanced waterproof protection, and wireless control through the Rain Bird 2.0 App. Maintain precise control in valve boxes, roadway medians, parks, sports fields, and other locations where dependable performance matters.

Up to 5 years of operation on four AA alkaline batteries
IP68-rated protection against dust, dirt, and water ingress
Dedicated master valve/pump output on every model

ESP-BAT-BT Technical Specifications

ESP BAT-BT Guide

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Advanced Control Through the Rain Bird 2.0 App

Key Features & Benefits

Rain Bird 2.0 App; available for Android™ and iOS® devices
Master Valve/Pump output on all models
Basic programming includes four independent programs A, B, C and D each with 8 start times per day
Stations can be assigned to several programs with different watering run times
Run time is from 7 seconds to 9 hours (max 18 hours with 200% seasonal adjust) in 1 second increments
Independent station operation allows sequential start times (with stacking in case of overlap)
Operates one valve per station
Global Monthly Seasonal Adjust; 0% to 200% (1% increment)
Four watering day cycle modes (custom, even, odd and cyclical) with permanent days off so no irrigation takes place on mow days, selectable by program for maximum flexibility and watering restriction compliance
Backup program may be saved and restored (manually or automatically for contractor default capability)
No loss of irrigation program after a battery replacement
Short and open circuit detection
PIN code protection
Direct Rain Sensor Connection accommodates the Rain Bird RSD-BEx Rain Sensor
Rain Sensor shutoff globally or by station
Operates with four AA alkaline batteries (AA, LR6, LR06): batteries not included

Fast Battery Service Without Losing the Program

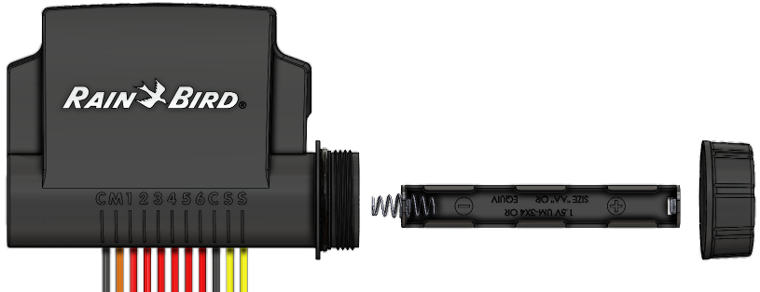

The removable wireless battery tray provides quick access to four standard AA batteries. Stored schedules and settings remain intact during battery replacement.

Common Applications for the ESP-BAT-BT Controller

Remote landscape areas without access to AC electrical power
Highway medians and roadside landscaping
Municipal parks, sports fields, and public green spaces
Commercial properties with distributed valve boxes
Residential properties where running electrical wire is impractical
Retrofit installations replacing older battery-operated controllers
Temporary irrigation setups for construction or event landscaping

How the ESP-BAT-BT Works

Install the controller in the valve box, near the top
Connect the DC latching solenoid (TBOSPSOL) to compatible valves
Insert four AA alkaline batteries (up to 5 years of battery life)
Download the Rain Bird 2.0 App (available for Android and iOS)
Connect via Bluetooth to program watering schedules, run times, and seasonal adjustments
Use advanced features like Offline Mode, Controller Sharing, and Mapping to manage sites remotely
Monitor battery status and controller health through the app

Compatible Valves

The ESP-BAT-BT works with Rain Bird DV, DVF, ASVF, PGA, PEB, PESB, EFB-CP, BPE, and BPES series valves when used with the TBOSPSOL DC latching solenoid.

Compatible Accessories

The ESP-BAT-BT can operate competitive valves using a compatible 9V DC-latching solenoid. Or install a Rain Bird TBOSPSOL 9V DC-latching solenoid using the appropriate adapter.

Rain Bird offers a black adapter for select plastic valves from Irritrol, Hardie/Richdel, and Buckner, and a brown adapter for select Champion and Superior brass valves.

The ESP-BAT-BT has a direct shutoff sensor connection that supports compatible contact sensors, including third-party rain, soil, or other shutoff sensors. Rain Bird offers the RSD-BEx rain shutoff device for this connection. Sensor shutoff can be configured globally or by individual station.

Frequently Asked Questions

How long do the batteries last in the ESP-BAT-BT?
The ESP-BAT-BT operates on four standard AA alkaline batteries and delivers three five years of battery life, depending on station programming, making it one of the longest-lasting battery-operated irrigation controllers available.

Is the ESP-BAT-BT waterproof?
Yes. The ESP-BAT-BT carries an IP68 waterproof rating, providing total protection against dust, dirt, and water ingress—even if the valve box floods.

What valves are compatible with the ESP-BAT-BT?
The ESP-BAT-BT works with Rain Bird DV, DVF, ASVF, PGA, PEB, PESB, EFB-CP, BPE, and BPES series valves when used with the TBOSPSOL DC latching solenoid.
HV valves manufactured on or after June 30, 2025 are also compatible with the TBOSPSOL. The HV valve bonnet was updated on this date to accept Rain Bird universal solenoids, including the TBOSPSOL.
HV valves manufactured before June 30, 2025 are not compatible with the ESP-BAT-BT.

Do I need a special solenoid for the ESP-BAT-BT?
Yes. ESP-BAT-BT was designed for use with Rain Bird TBOSPSOL 9V DC-latching solenoids but is intended to be compatible with most competitive 9V DC-latching solenoids.

Can I use the ESP-BAT-BT with non-Rain Bird valves?
Yes. The ESP-BAT-BT can operate competitive valves using a compatible 9V DC-latching solenoid. Or install a Rain Bird TBOSPSOL 9V DC-latching solenoid using the appropriate adapter.
Rain Bird offers a black adapter for select plastic valves from Irritrol, Hardie/Richdel, and Buckner, and a brown adapter for select Champion and Superior brass valves.

How many stations does the ESP-BAT-BT support?
The ESP-BAT-BT is available in 1, 2, 4, and 6 station models, all with a dedicated master valve/pump output.

Do I need Wi-Fi or internet to use ESP-BAT-BT?
No. ESP-BAT-BT communicates directly with your mobile device using Bluetooth, so an internet or Wi-Fi connection is not required to communicate with the controller when you are on site.
You can also view and make changes in the Rain Bird 2.0 App while away from the controller. Those changes are saved in the app and can be synchronized to the controller when you or another team member returns within Bluetooth range.

Can I program the ESP-BAT-BT without being on site?
Yes. The Rain Bird 2.0 App includes an Offline Mode that lets you edit, track, and save controller changes from anywhere. When you return to the site and are within Bluetooth range, changes synchronize automatically.

What is the Bluetooth range of the ESP-BAT-BT?
The ESP-BAT-BT uses Bluetooth Low Energy technology. Typical Bluetooth range varies by environment. Ranges can vary from 30 to 60 ft. Depth of installation in the valve box and/or obstacles near the installation can impact range.

Can multiple people manage the same ESP-BAT-BT controller?
Yes. The Controller Sharing feature in the Rain Bird 2.0 App allows you to share secure access to any controller with team members, enabling collaborative site management.

What happens to the program when I change batteries?
The ESP-BAT-BT retains all programming during battery replacement—there is no loss of your irrigation schedule or settings.

Does the ESP-BAT-BT work with rain or soil sensors?
Yes. The ESP-BAT-BT has a direct shutoff sensor connection that supports compatible contact sensors, including third-party rain, soil, or other shutoff sensors. Rain Bird offers the RSD-BEx rain shutoff device for this connection. Sensor shutoff can be configured globally or by individual station.

More Information

More Information
Zones/Stations	6
Indoor/Outdoor	Indoor/Outdoor
Controller Type	Battery-operated
