25PJDAC - 1/2" Inlet Brass Impact Sprinkler

$63.99

In stock

SKU

A31896

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and developmental harm. More Information

Covers up to 5,281 sq. ft.

With its rugged all-metal construction and proven adjustment ease for spray distance and arc, this deluxe riser-connected impact sprinkler will be saving your lawn and reducing your water bills for a long time.

The #1 selling brass impact sprinkler, the 25-PJDA-C is patterned after Rain Bird's original impulse sprinkler first patented in 1933. It features straight-though flow design for superior performance with dirty and reclaimed water.

It is ideal for use in medium and large lawn areas as well as gardens and landscaping.

Impact Sprinklers Performance Charts

Impact Sprinkler Troubleshooting Guide

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Brass, bronze, and stainless steel construction lasts longer than competitors' zinc sprinklers
Easy to install and adjust; full (360°) or part circle (20° to 340°) coverage with infinite pattern adjustment
Adjustable deflector flap adjusts spray distance from 20' to 41' radius
Diffuser screw breaks water into smaller water droplets for uniform watering
Die-cast, white bronze PJTM spray arm controls stream, prevents side splash onto buildings and walkways
High gallonage output; 1/2" male pipe thread connection
Straight-through water flow design for superior dirty water performance
Ideal for use in medium and large lawn areas as well as gardens and landscaping
Patterned after Rain Bird's original impulse sprinkler first patented in 1933
Does not include sprinkler base, sprinkler head only

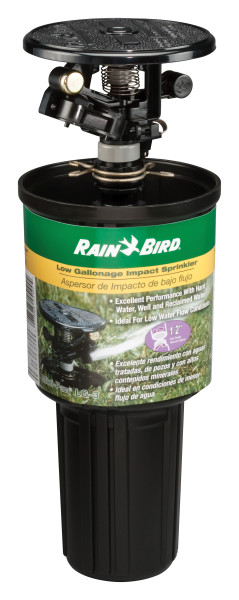

	AG-5	LG-3	25PJDAC	35ADJTNTB	P5-R PLUS	P5-R
SPECS
Coverage Area	6,361 square feet	4,070 square feet	5,281 square feet	7,823 square feet	5,281 square feet	5,281 square feet
Fitting Size	3/4" or 1/2" NPT female bottom threaded inlet, 1/2" NPT female side threaded inlet	1/2" NPT female bottom threaded inlet, 1/2" NPT female side threaded inlet	1/2" male pipe thread	3/4" male pipe thread	1/2" male pipe thread	1/2" male pipe thread
Throw Distance	24'-45' radius	26'-36' radius	20'-41' radius	23'-50' radius	20'-41' radius	20'-41' radius
Pattern	360° or 20°–340°	360° or 20°–340°	360° or 20°–340°	360° or 20°–340°	360° or 20°–340°	360° or 20°–340°
Adjustable	✓	✓	✓	✓	✓	✓
Maximum Pressure	50 PSI	50 PSI	70 PSI	60 PSI	60 PSI	60 PSI
Maximum Flow Rate	8.4 GPM	4.2 GPM	5.0 GPM	7.8 GPM	7.1 GPM	7.1 GPM
Sprinkler Base	fitting (not included)	fitting (not included)	Riser with a standard 1/2" coupling (not included)	Riser with a standard 3/4" coupling (not included)	Riser with a standard 1/2" coupling (not included)	Riser with a standard 1/2" coupling (not included)
Special Feature	Superior performance in dirty water conditions.	Superior performance in dirty water conditions.	Deluxe brass, bronze, and stainless-steel construction. High gallonage output.	Deluxe brass, bronze, and stainless-steel construction. High gallonage output.	Superior performance in dirty water conditions.	Superior performance in dirty water conditions.

Limited Warranty

If the original purchaser of a new Rain Bird consumer product purchased directly from Rain Bird, an authorized retailer, or an authorized reseller is not satisfied for any reason, the purchaser may return the product to the seller within a reasonable time after purchase for a full refund of the purchase price. Rain Bird’s sole obligation under this warranty is limited to providing a refund as described above. This warranty is extended only to the original end-user purchaser or the original recipient of the product as a gift. It does not extend to any subsequent owner or transferee. Except as expressly provided above, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this warranty, to the extent permitted by law.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

More Information

More Information
Model	25PJDAC
Coverage Radius	20-41 ft
Inlet	1/2 in
Features	Impact Drive
Coverage Arc	360° Full Circle or 20° - 340° Part Circle
Material	Brass
Inlet Size	1/2 in male
Coverage Arc	Full/Part Circle
Features	ADJ Distance Control Diffuser Pin, PJ Precision Jet Tube
Specifications	Spacing up to 50 feet apart--high gallonage output.
